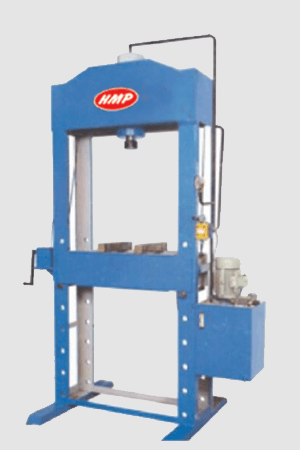

HYDRAULIC POWER PRESS MACHINE

Features & Applications

Limit sensor for easy die adjustment.
Low noise level, less maintenance expenses
Efficient compact power pack
Low power consumption
High speed, high output and high efficiency
Electrical control panel with selection of inch-on-auto mode of operation
Foot switch movable for operation from safe position.
Punching
stamping
forming
embossing
cutting
bending and riveting etc.
Std. Accessory:

  • Main drive motor
  • Power pack with all hydraulic components
  • Electrical control panel with limit sensor and foot switch

Optional Accessory:

  • Safety light curtain (sensor)
  • Stock counter in control panel
  • Double speed power pack
  • First fill of Hydraulic oil

Specifications

MODEL TONNAGE STROKE LENGTH HOLE IN RAM BED SIZE ( L X W) HOLE IN BED DISTANCE BED TO RAM POWER
IN MM IN MM IN MM IN MM IN MM IN H.P.
HPP 5 5 100 25 405 x 254 63 180 2
HPP 10 10 150 25 460 x 305 76 205 3
HPP 20 20 150 32 460 x 305 76 265 3
HPP 30 30 150 38 610 x 405 89 280 5
HPP 50 50 150 38 750 x 520 101 350 5
